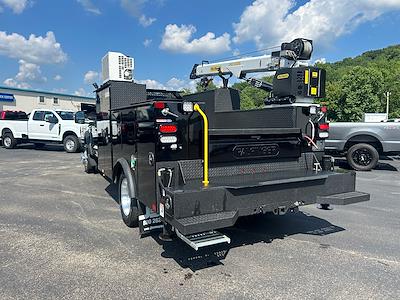

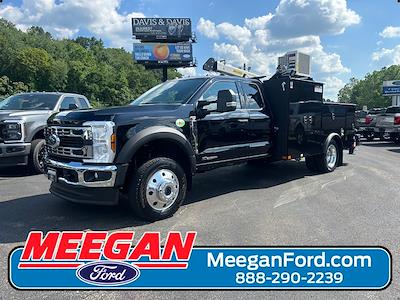

New 2025 Ford F-550 Super Cab 4x4 11' 1" Palfinger Mechanics Body with Crane

The PAL Pro 39 is our new weight-optimized generation of bodies available in 9' and 11' configurations. In this development, we discovered new ways to reduce weight to create the lightest steel crane body in the industry without sacrificing durability.

Features:

Featuring new light-weight aluminum doors, the PAL Pro 39 offers you a more usable payload and reduced corrosion. Choose from various standard options to meet your service truck needs, including a headache rack, accessory mounting brackets, tail shelf and bumper options, and more.

PAL Pro 39 is manufactured using 12-gauge A-60 galvanneal steel and features a full-length torsion box understructure interlaced with tubular cross members. Combined with integrated outrigger housings, PAL Pro 39 effectively manages crane forces while preventing flexing and cracking.

PAL Pro 39 features a 39,000 ft. lbs. crane reinforcement designed to accommodate PALFINGER PSC 3216, 4016, 4025, 5025, and 6025 service cranes.

PAL Pro 39 is designed to be the lightest steel crane body in the industry without sacrificing durability. The body can be mounted on a dual wheel chassis with a GVWR as low as 14,001 lbs., providing excellent flexibility for a wide range of applications. Threaded weldment options available from the factory make installing top mounted accessories easy. Boom rest, welder, compressor, EnPak, Air-n-Arc and AirPak mounts eliminate the need to drill holes in the body.

PAL Pro 39 features light-weight aluminum double panel doors that provide rigid performance with internal C-channel stiffeners adhered with structural adhesive. Interior compartments feature aluminum hinges and divider trays that are light-weight and corrosion resistant.

Interior compartments on the PAL Pro 39 are coated with Zolatone to resist damage commonly caused by tools, chains, and parts. Zolatone provides an additional layer of rust protection and as an added bonus, the coating is white in color and helps to brighten up the interior.

PAL Pro 39 features either a 12" or 21" deep work bench bumper designed to provide technicians with a useable work surface for field repairs, welding, and more. Each bumper features a 1/4" steel top plate and the 21" bumper adds a thru-compartment for internal storage of long tools and chains. All PAL Pro 39 bumpers come standard with a 2" receiver tube hitch rated to 16,000 lbs. towing capacity.

Standard Features:

• 44" Standard Compartment Heights with Raised Compartment Options
• 9' and 11' Standard Configurations
• Treadplate Cargo Floor, Load Space Walls and Compartment Tops
• Hybrid Torsion Box and Ladder Frame
• Palfinger Engineered Internal Gussets Prevents Body Cracking
• Full Length Channel Drip Rails
• Double Panel Doors with Internal C-channel Stiffeners, Adhered with Structural Adhesive
• Non-marring Boom Rest
• Workbench Featuring 12" or 21" Bumper, Receiver Hitch, 1/4" Steel Top Plate and Thru Compartment
• Linear Adjustable Front Mounts
• Aluminium Doors and Hinges
• Rubber Mounted LED Lights
• E-coat Primer
